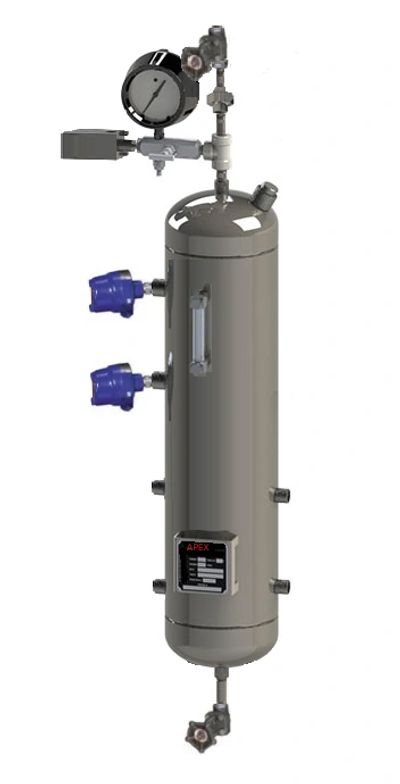

ANSI LITE Plan 7352

The ANSI LITE MP52 series aligns with ANSI Plans 7352 and 7353. The 7352 is designed to support liquid buffer fluid for a containment seal chamber that is below the seal chamber pressure. The 7353 is a pressurized system designed to isolate the seal from the process completely by providing liquid barrier fluid at a pressure higher than the seal chamber.

The ANSI Lite 52/53 is designed for general service tandem / dual seal applications with lower pressures and temperatures.

• 3 Gallon Capacity at Normal Liquid Level
• 304 Stainless Steel Construction
• 6” Body with Flat Bottom / Top
• Tubular Level Gauge
• 219 PSIG MAWP (-20F to 200F)
• Liquid Filled Pressure Gauge
• Orifice Union (Plan 52)
• Ball Valves on Vent and Drain
• Cooling Coils, Pressure / Level Switches Optional
